Refractory Intensive & Planetary Mixer, Pan Mixer Manufacturer | REFAMIX

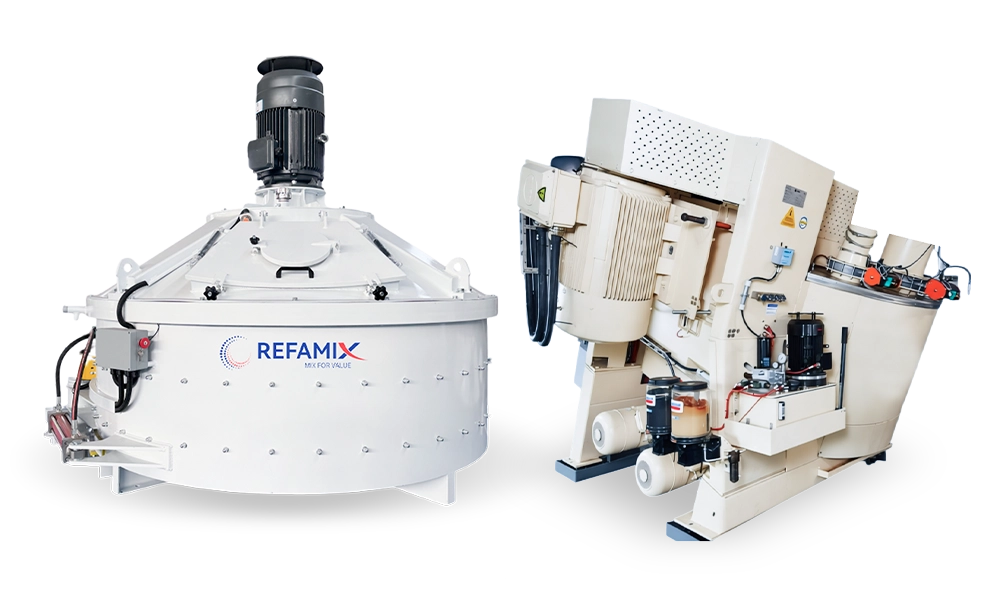

The Refamix refractory planetary mixer with stable and durable quality, is capable of effortlessly mixing, dry, semi-dry and low-moisture refractory castable materials, foundry sands, glass materials preparation, ceramic industry, high-performance concrete or refractory block making and more. Its unique rotating and mixing star directions ensure thorough and uniform distribution, multiple trajectories, no dead zones in mixing resulting in homogenously mixing efficiency.

High performance tilted intensive mixer:the mixing pan tilted at a specific angle conveys the material upward during rotation. When the material reaches a certain height, it falls downward due to gravity, forming coarse mixing of the material through horizontal and vertical movements. During material mixing, the rotational speeds of the rotating barrel and high-speed rotor can be preset according to process requirements; the rotating mixing pan and high-speed rotor generally rotate in opposite directions to enable the most intense mixing motion of the material in the mixer.

The pan mixer is for industrial cost effective mixing equipment, the core function is to achieve uniform mixing of various materials. Its structural features are reflected in the built-in mixing blades drive system, the two-dimensional optimization scheme for the arrangement of mixing blades, and the avoidance of material adhesion through specific installation angles of lateral scrapers. Typical models adopt detachable mixing blades and wear-resistant lining plate designs, which are widely used in fields such as concrete and wear-resistant materials.

The wheel grinding mixer combines the advantages of both the vertical shaft planetary mixer and the wheel grinding machine, offering both planetary mixing and wheel grinding functions. With the adoption of an advanced planetary mixing mechanism, the number of times materials are turned under the grinding wheel per unit time is greatly increased, significantly enhancing the grinding effect. Roller grinding mixer boasts advantages such as high grinding efficiency, good quality, and low energy consumption, making it suitable for mixing various powder and granular materials.

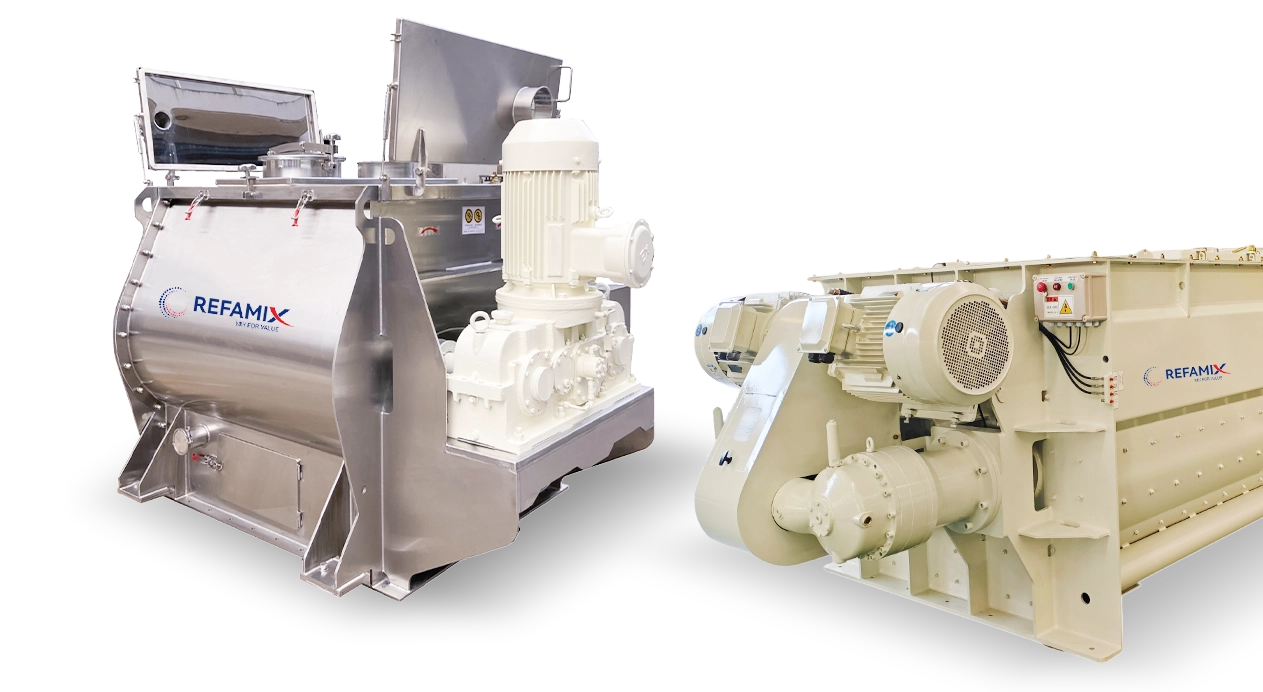

The paddle mixer with twin shaft overall structure design is compact and occupies less space, which is convenient for the installation of the whole machine and the transformation of equipment. The combination of mechanical seal and pneumatic seal is adopted to eliminate the phenomenon of material leakage. The mixing barrel is made of wear-resistant material and has a long service life.

The working principle of the double-shaft continuous mixer is that the transmission device drives the two shafts equipped with mixing blades to rotate synchronously. When the material enters the machine slot through the feeding port, the water spray device immediately sprays water, transforming the material from a dry state to a wet state. While being humidified, the wet material continuously mixes and blends with each other under the action of the spiral mixing blades, and moves towards the discharge port. Finally, the qualified material is discharged from the discharge gate.
